TSM GRANDE BRIO-75-800

TSM GRANDE BRIO-75-800

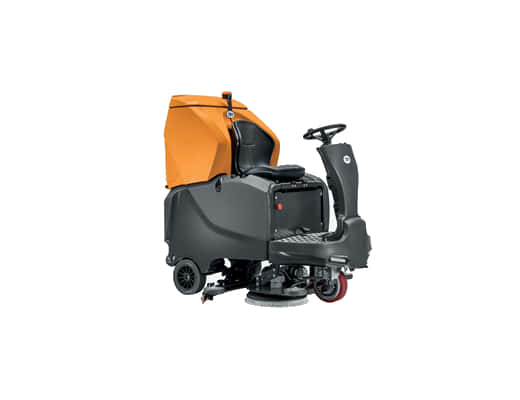

The TSM GRANDE BRIO 75-800 is a professional scrubber dryer designed for cleaning floors in large areas like warehouses, shopping malls and supermarkets.
Extremely robust and efficient, engineered to provide exceptional performances for spaces up to 4000 sqm, this ride on floor scrubber is easy to use thanks to its intuitive controls; excellent visibility and high maneuverability are guaranteed for the user.
The innovative chassis of the Grande Brio 75 industrial scrubber dryer, can be equipped with different scrubbing groups, which identify the machine cleaning width: 550 mm, 650 mm, 800 mm with disk brushes, or 620 mm with cylindrical brushes .

The TSM GRANDE BRIO RIDE ON 75-800 scrubber dryer has been developed to meet the SMART features:

the use is very simple, the console clearly shows the combinations of operations that can be set;
• the scrubbing deck that stands out on the right side of the equipment allows the user to clean and dry along borders;
• it is extremely agile between walls and corners;
• its compactness allows to pass through traditional doors and cash counters, and to mount on standard elevators;
• the parabolic squeegee is placed behind brushes in order to provide high performances: the machine is more maneuverable and its total length is reduced;
• the front-wheel drive allows the machine to get over remarkable slopes and to claim greater holding on wet floor;
• it has a robust steel chassis;
• the easy access to all internal components of machine make it possible to reduce maintenance cost;
• its unique design.

GRANDE BRIO RIDE ON 75-800 scrubber dryer is the perfect equipment for cleaning offices, restaurants, bars, industrial sites, schools, , airports, ports, train stations, shopping malls, logistical depots.

Send Enquiry

Specifications

  • Brushes size 4 x 205 mm
  • Brush rpm 210 rpm
  • Brush motor power 4 x 200 W
  • Squeegee width 850 mm
  • Water lift 1590 mm H2O
  • Vacuum motor power (stages) 490 (3) W
  • Brushes pressure 28 kg
  • Traction motor power 700 (frontal) W
  • Total power 1990 W
  • Battery charger 24V -15A
  • Max battery capacity (DIN) 150 (Wet) Ah/s
  • Batteries compartment (LxWxH) 400x420x325 mm
  • Maximum slope 5 %
  • Maximum speed 5 Km/h
  • Steering range 1150 mm
  • Noise level 73 db (A)
  • Dimensions (LxWxH) 1150x780x1430 mm
  • Weight without batteries 163 kg
  • Weight with batteries 275 kg
  • Packaging (LxWxH) 1200x800x1590 mm
