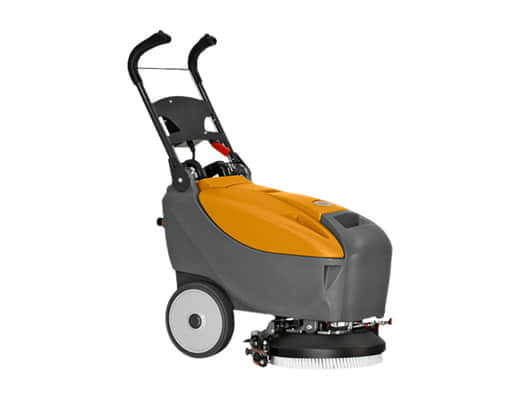

TSM GRANDE BRIO 35B ECORAY

TSM GRANDE BRIO 35B ECORAY

TSM Grande Brio 35 B walk-behind compact scrubber dryer  has the option of being fitted with the innovative, autonomous Ecoray System which uses ultraviolet energy to tackle any microorganisms left behind after cleaning.
Used with or without chemicals, it cuts costs, saves energy, improves indoor air quality and assists in eliminating organic odors.
The Ecoray System can also be used on the Grande Brio Ride On 75-650, giving the user the ability to implement this ultra-hygienic system into a wide variety of site locations like hospitals and the food industries.

The TSM GRANDE BRIO 35 B Ecoray scrubber dryer is defined as SMART because:

the Ecoray System works automatically once the user switch on the brush;
the use is intuitive, there are only two switches, one for turning on the brush and the second for the vacuum;
• the handle height can be adjusted in multiple positions also during use, as much for the user height than for reaching narrow rooms;
• there is no need for a traction motor as the machine is well balanced and goes ahead without pushing;
has a parabolic squeegee behind the brush that dries perfectly even on bends;
• the water flow regulation, the squeegee lifting are fully mechanical;
• it offers a complete visibility on scrubber group for the easy cleaning along wall borders;
• the maintenance is effortless thanks to fast and easy access to tanks, filter, battery, and squeegee blades.

TSM GRANDE BRIO 35 B Ecoray is the perfect equipment for environment where a higher level of cleanliness is required such wellness centers, school classrooms, medical and dental clinics, veterinary clinics, chemist's shops, rest homes, kitchens, butcher's shops.

Send Enquiry

Specifications

  • Life time UV source
    9000 h
  • ECORAY® system power
    100 microW/mm²
  • Brushes size
    1 x 350 mm
  • Brush rpm
    170 rpm
  • Brush motor power
    1 x 250 W
  • Squeegee width
    420 mm
  • Water lift
    540 mm H2O
  • Vacuum motor power (stages)
    2x 200 W
  • Brushes pressure
    28 kg
  • Total power
    550 W
  • On board battery charger
    12V - 8A
  • Max battery capacity (DIN)
    65 (AGM) Ah/s
  • Batteries compartment (LxWxH)
    290x190x235 mm
  • Maximum slope
    2 %
  • Noise level
    67 db (A)
  • Dimensions (LxWxH)
    720x490x645 mm
  • Weight without batteries
    42 kg
  • Weight with batteries
    68 kg
  • Packaging (LxWxH)
    790x520x770 mm
